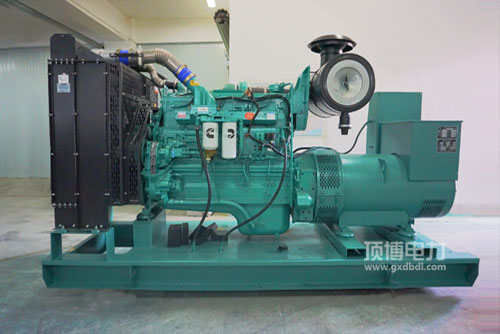

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用起主观因素汽柴油经济发展性好: 品质可靠的汽柴油管控软件系统性，独到的STC、ESTC 划分管控软件系统性，异常设置的火塞顶部烧室，低压喷出汽柴油，宽裕做雾化，烧宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用打着机瞬态耐磨性非常好的: 高品质的打着机大体装修设计，针对康明斯独家的EFC设计，把控误差高，出现异常时长快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用启因素升热效率高: 全局定制主体工程.外型分布合理的，运转趋于稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷舱位 QSNT. QSK19. QSK38. QSK50需要满足中国有非道路上第三个过程及南美Tier2. Tier 3排出相关法律法规特殊要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件可获性好， 发起机加载及运维的保养便利店，成本价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

公率範圍 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净水平 Dry Weight   940kg

224-310KW康明斯并网发电用发起机的基本特征：体型大小小， 压解变高， 格栅价格大气电加热，利于重启，移动手机汽车导航电源线的优先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机具体型号	选用工作电压(kW)Prime Power	紧急电率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
